Volvo V70 (1998 – 1999) – wiring diagrams – security/anti-theft

6 July 2017 admin V70, Volvo 0

Volvo V70 (1998 – 1999) – wiring diagrams – security/anti-theft

Year of productions:  1998, 1999

Security/anti-theft

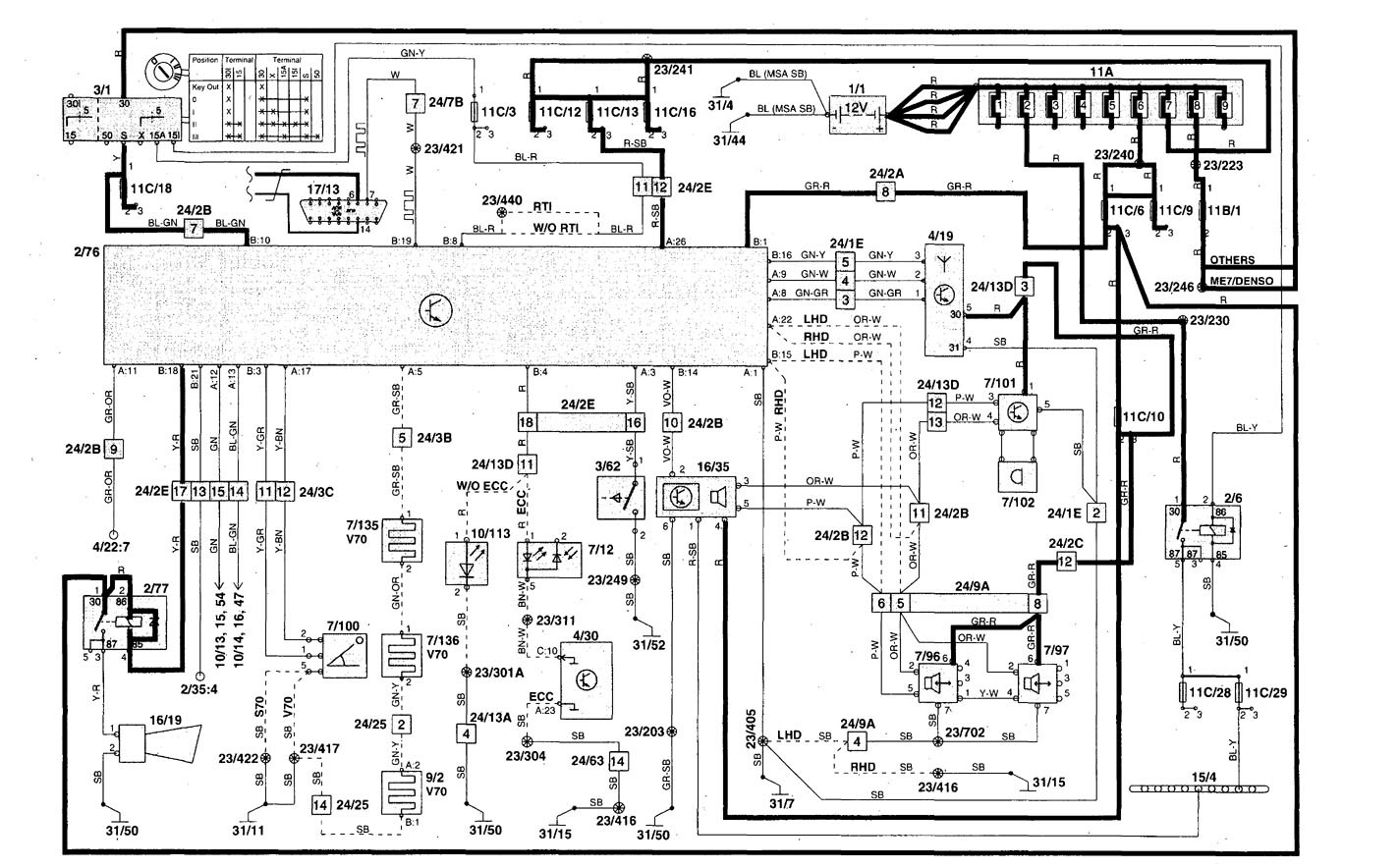

Volvo V70 - wiring diagram - security/anti-theft (part 1)
Volvo V70 – wiring diagram – security/anti-theft (part 1)

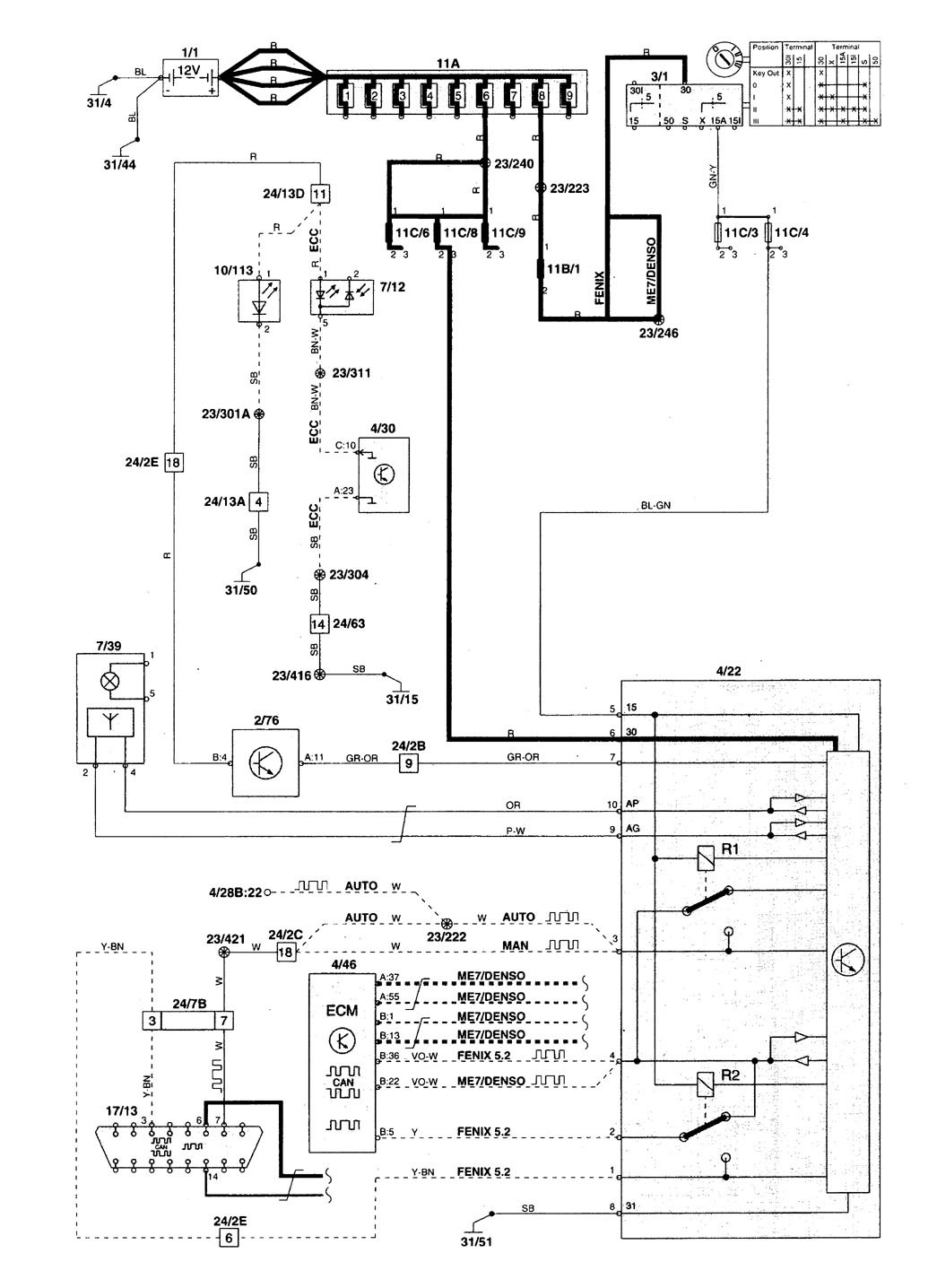

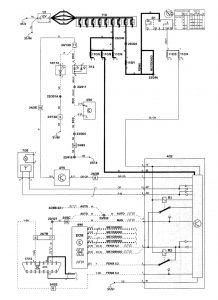

Volvo V70 - wiring diagram - security/anti-theft (part 2)
Volvo V70 – wiring diagram – security/anti-theft (part 2)
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
