Volvo V70 (1999) – wiring diagrams – fuel pump

Volvo V70 (1999) – wiring diagrams – fuel pump

Year of productions:  1999

Fuel pump

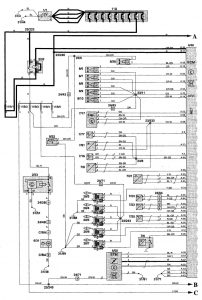

Volvo V70 - wiring diagram - fuel pump (part 1)
Volvo V70 – wiring diagram – fuel pump (part 1)

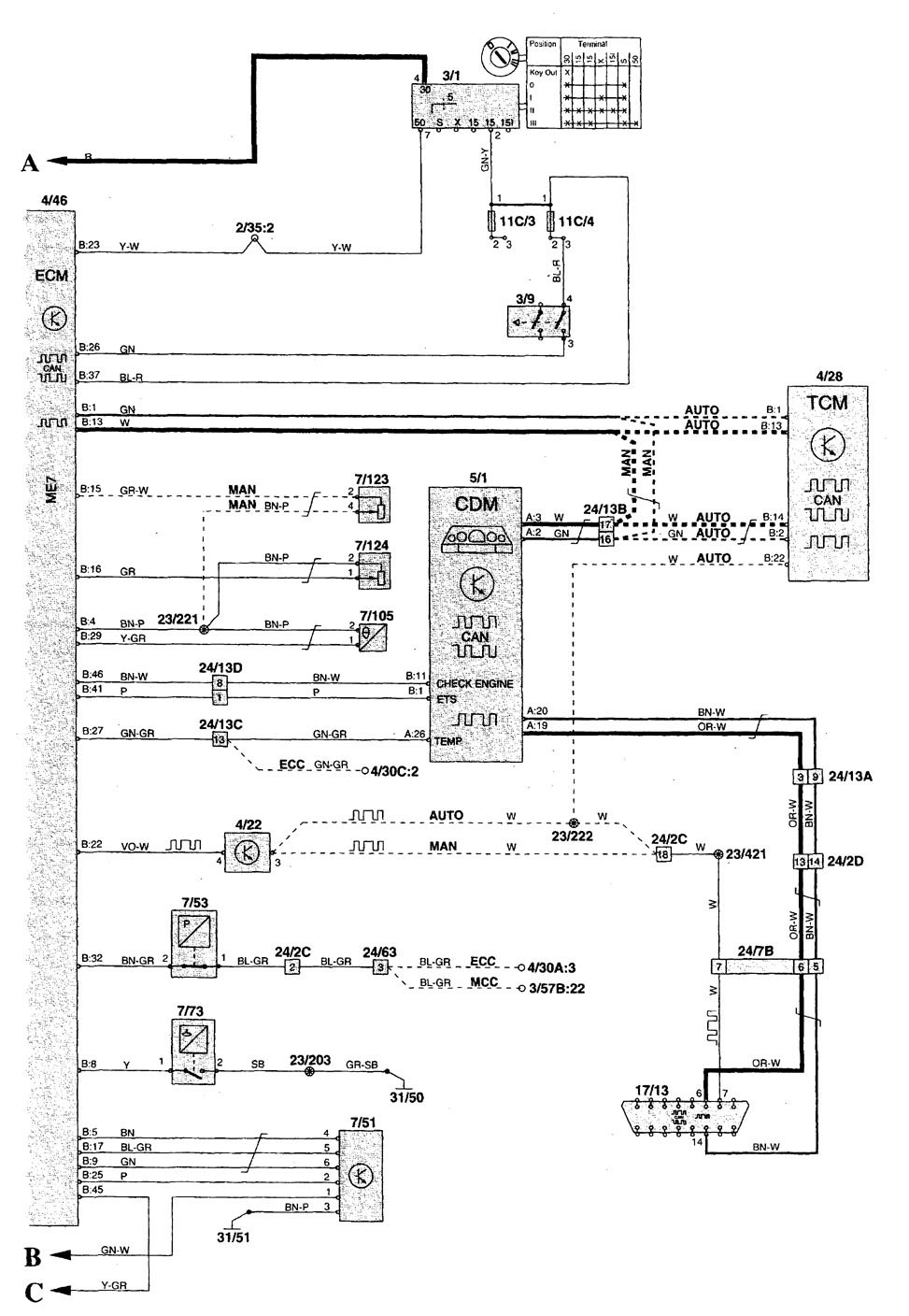

Volvo V70 - wiring diagram - fuel pump (part 2)
Volvo V70 – wiring diagram – fuel pump (part 2)

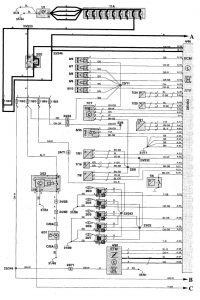

Volvo V70 - wiring diagram - fuel pump (part 3)
Volvo V70 – wiring diagram – fuel pump (part 3)

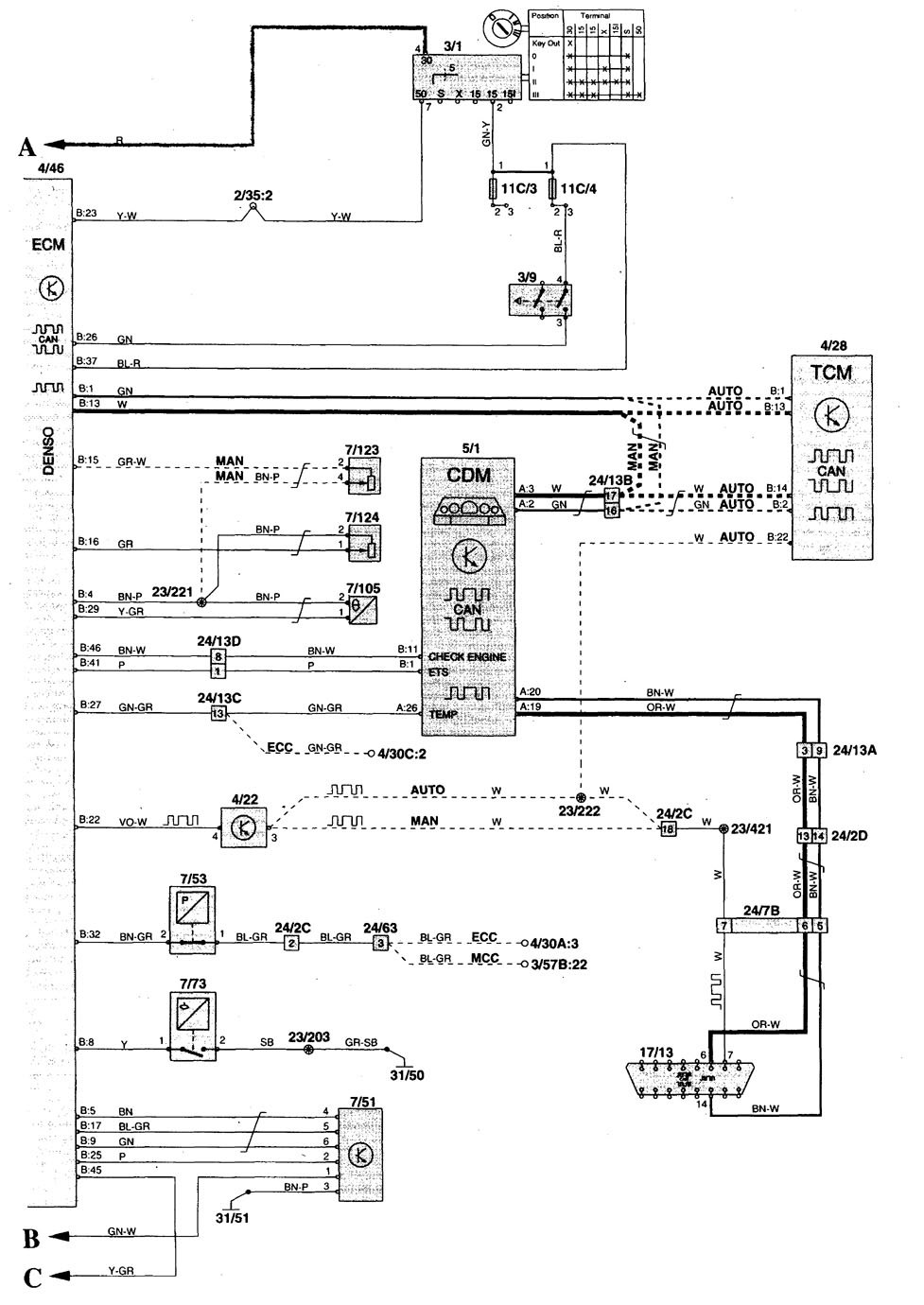

Volvo V70 - wiring diagram - fuel pump (part 4)
Volvo V70 – wiring diagram – fuel pump (part 4)
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
