Volvo V70 (2000) – wiring diagrams – heated mirror

Volvo V70 (2000) – wiring diagrams – heated mirror

Year of productions:  2000

Heated mirror

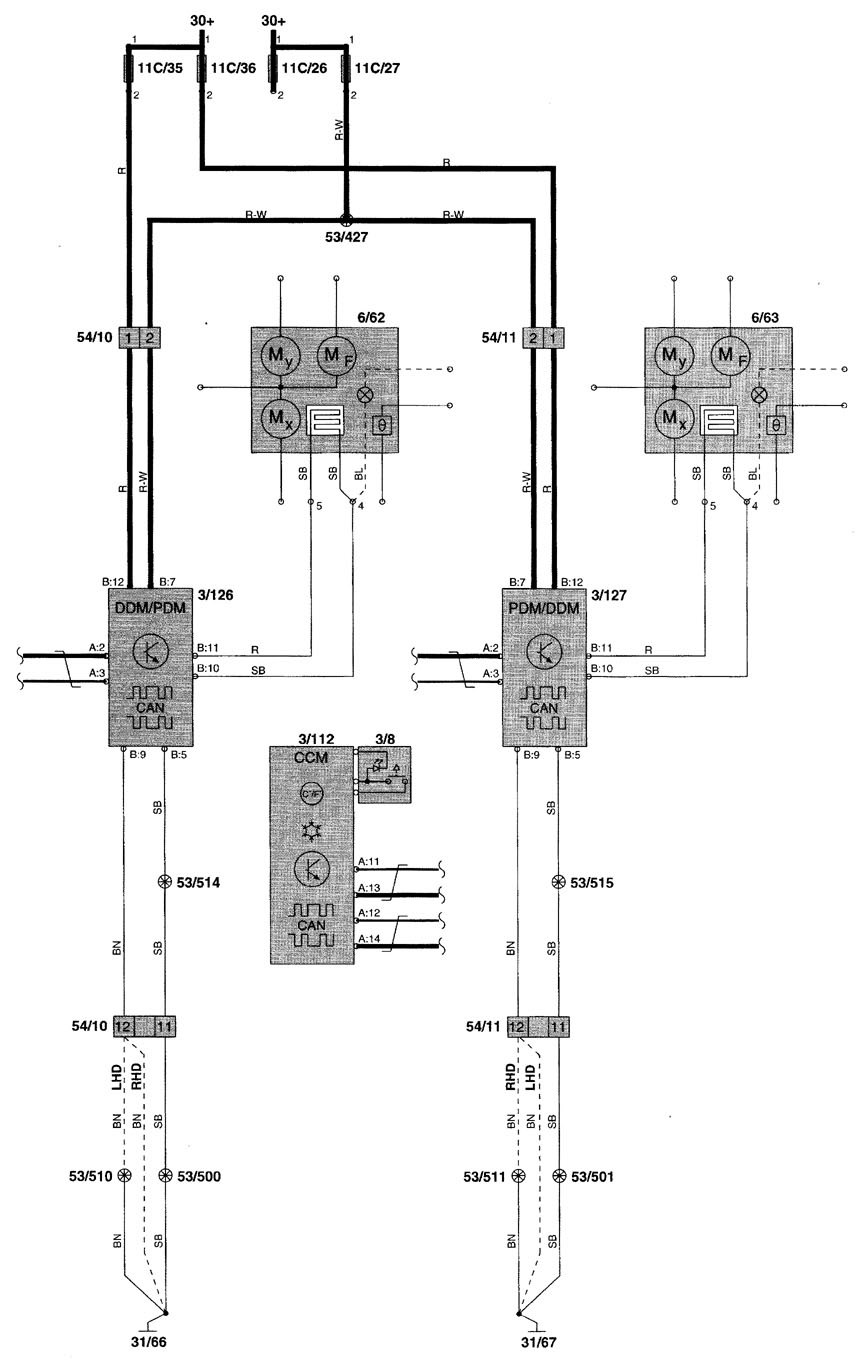

Volvo V70 - wiring diagram - heated mirror
Volvo V70 – wiring diagram – heated mirror
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
