Volvo V90 (1997 – 1998) – wiring diagrams – heated seats

Volvo V90 (1997 – 1998) – wiring diagrams – heated seats

Year of productions:  1997, 1998

Heated seats

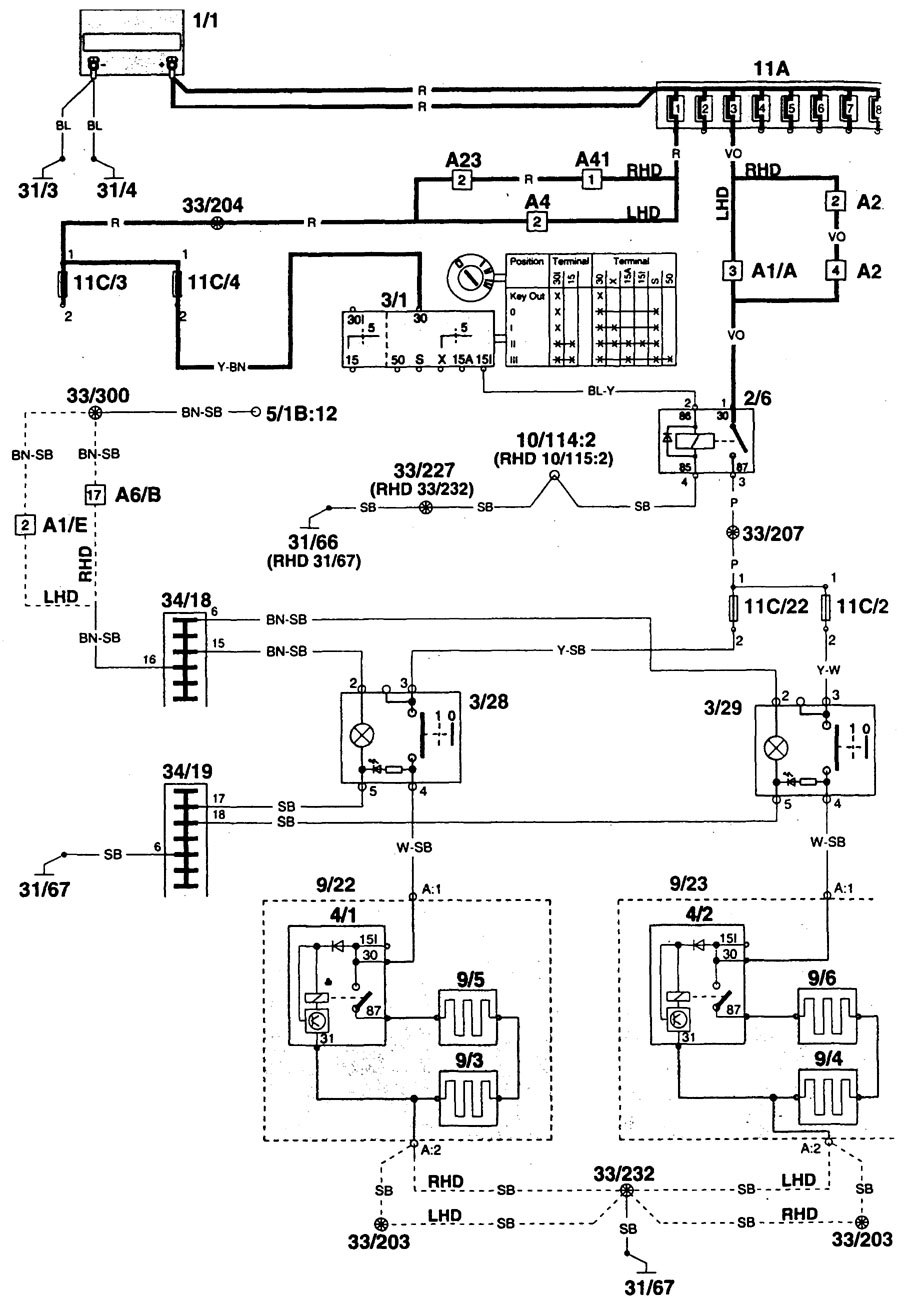

Volvo V90 - wiring diagram - heated seats
Volvo V90 – wiring diagram – heated seats
Volvo V90 - wiring diagram - component identification (part 1)
Volvo V90 – wiring diagram – component identification (part 1)
Volvo V90 – wiring diagram – component identification (part 2)
Volvo V90 – wiring diagram – component identification (part 2)
Volvo V90 - wiring diagram - component identification (part 4)
Volvo V90 – wiring diagram – component identification (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
