Volvo V90 (1997 – 1998) – wiring diagrams – transmission controls

Volvo V90 (1997 – 1998) – wiring diagrams – transmission controls

Year of productions:  1997, 1998

Transmission controls

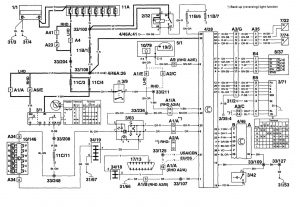

Volvo V90 - wiring diagram - transmission controls (part 1)
Volvo V90 – wiring diagram – transmission controls (part 1)

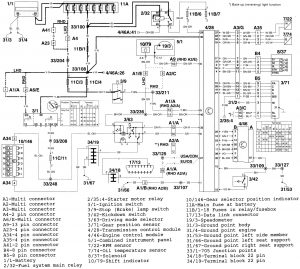

Volvo V90 - wiring diagram - transmission controls (part 2)
Volvo V90 – wiring diagram – transmission controls (part 2)
Volvo V90 - wiring diagram - component identification (part 1)
Volvo V90 – wiring diagram – component identification (part 1)
Volvo V90 – wiring diagram – component identification (part 2)
Volvo V90 – wiring diagram – component identification (part 2)
Volvo V90 - wiring diagram - component identification (part 4)
Volvo V90 – wiring diagram – component identification (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
