Year of production:

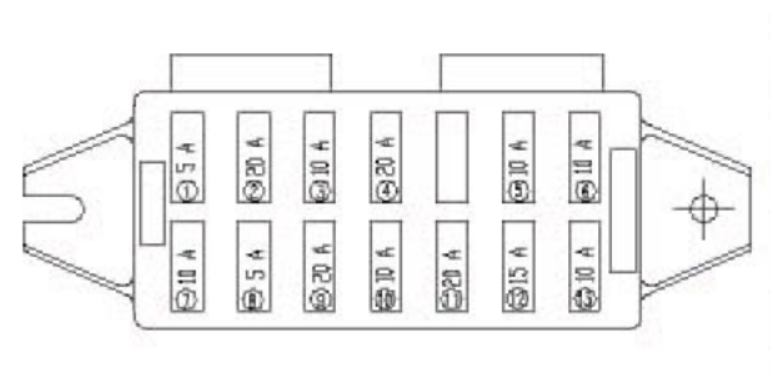

Fuse panel
| Number | Ampere rating [A] | Function |
| 1 | 5 | Stop electromagent valve |
| 2 | 20 | Fan air condition |
| 3 | 10 | Alarming ling rear light |
| 4 | 20 | Radiatior fan |
| 5 | 10 | Power switch, stop relay |
| 6 | 10 | Air condition amplifer |
| 7 | 10 | Assistant switch of start |
| 8 | 5 | Top light |
| 9 | 20 | Start motor |
| 10 | 10 | Engine, electricity trumpet |
| 11 | 20 | Working light |
| 12 | 15 | Rain scaler, Deflecte relay |
| 13 | 10 | Igniter |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
